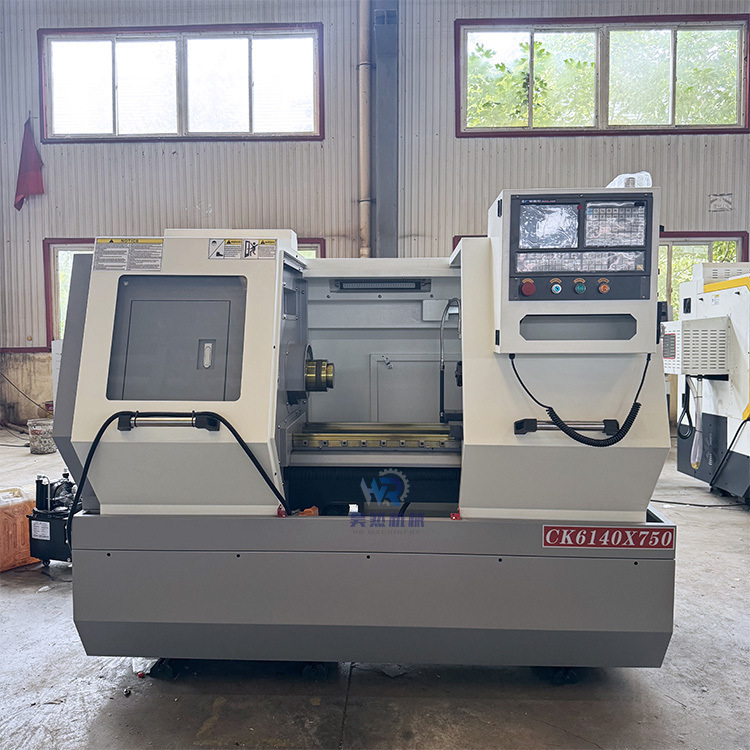

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Büyük resim :  CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Ürün ayrıntıları:
Menşe yeri: Shandong, Çin
Marka adı: HR
Sertifika: CE
Model numarası: CK6140
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: $9130 1set
Ambalaj bilgileri: Ahşap kasa
Teslim süresi: 30 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 40 takım ay
İletişim

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine

Açıklama
Gerilim: 3 Faz 380V 50Hz Otomatik sınıf: Otomatik
Güç (W): 7.5kw Durum: Yeni
Maks. Salıncak çapı: 400mm Ağırlık: 1650/1700kg
CNC olsun ya da değil: CNC Tip: yatay
Satış sonrası hizmet sağlanan hizmet: Çevrimiçi Destek Garanti: 1 yıl
Mil delikli: 60 mm Mil Hızı: 150-2500rpm
Renk: Seçim yapma özgürlüğüne sahipsin. Max. Maks. Spindle Speed (rpm) Mil Hızı (rpm): 2500rpm
Ürün adı: CNC torna makinesi CK6140 yatay metal kesme makinesi Yıl: Yeni
Kontrol sistemi: SIEMENS GSK FANUC (isteğe bağlı) Makine tipi: Yassı Yatak Döner,CK6140 Yüksek Kalite Çin Yassı Yatak CNC Döner Makinesi Fiyatı
Vurgulamak:

small benchtop CNC lathe machine

,

horizontal CNC turning machine

,

CK6140 CNC lathe machine

CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine
Product Description

  •






    •
    •

    •
  • CNC Lathe Features

    •

1. Frequency conversion stepless speed regulation.
2.With servo system .
3.Four position elearic turret .
4.Standard configuration: spring chuck and chuck double use.
5.Optional configuration : hydraulic chuck, gang type tool post.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 0
Item
CK6140A
CK6140B
Max. swing dia. over bed
Φ400mm
Φ400mm
Max. swing dia. over cross slide
Φ225mm
Φ245mm
Max. processing length(mm)
750
1000
750
1000
Dia. of spindle hole
Φ60mm
Φ52mm
Spindle speed
150-2500rpm
150~500rpm (low) 320~1600rpm (high)
spindle taper
MT6
Tool holder
4 station electric tool post(optional 6/8staion electric turret)
Tool bar section
20X20
20X20
Main motor power
5.5KW
5.5KW
X/Z axis fast feeding speed
6/8 M/MIN
6/8 M/MIN
X/Z axis position accuracy(mm)
0.01/0.015
0.01/0.015
X/Z-axis repeatability(mm)
0.012/0.013
0.012/0.013
Clamping
3 Jaw Manual Chuck(optional pnematic or hydraulic chuck)
Tailstock sleeve dia.
60
60
60
60
Tailstock sleeve travel
120mm
120mm
Tailstock taper
MT4
Dimension
2120X1400X1700
2050x1400x1650
2370X1400X1700
2300X1400X1650
Weight(kg)
1800
1950
1850
2050
Standard configuration:
Optinal configuration:
GSK928 CNC Controller
Siemens,Fanuc cnc controller system
Servo motor for X,Z axis, Servo driven
pneumatic chuck,hydraulic chuck
3 Jaw Manual Chuck
pneumatic tailstock,hydraulic tailstock
4 station electric tool post
6 staion tool turret,8staiton tool turret
Auto lubrication system
Auto feeder system
lighting system
Chip conveyor
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 1
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 2
Details Images
Product Presentation
This machine is widely used in processing and manufacturing the electrical appliance, instrume ntation industry,automobile, motorcycle, fastener bearings, photographic and film machinery.hardwa re tools watches, glasses, stationery motors, valves and gas and other high precise and complex components lt is the ideal high eficient equipment in the hardware machining industry.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 3
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 4
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 5

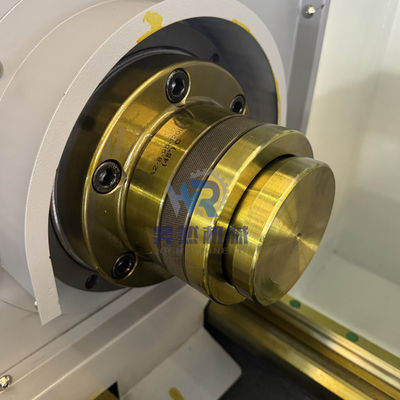

Manual chuck

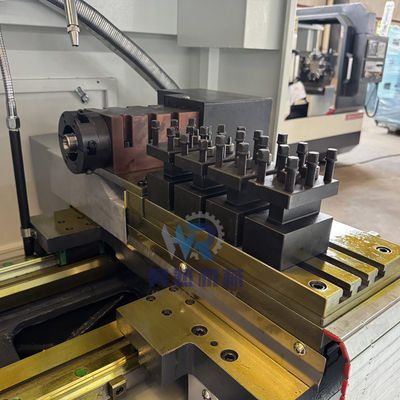

4 Position Electrical Toolpost
Circuit Controlle
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 6
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 7
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 8
Electromagnetic Pump
GSK Controller System(optional)
Spindle Diameter
Company Introduction
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 9
Shandong HR machine Co., Ltd.is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 10
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 11
Our services
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 12



Our Services & Strength
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 13
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 14
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certificationand CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 15
CK6140 CNC Turning Machine Small Benchtop Horizontal CNC Lathe Machine 16
Recommend Products
Recommended by seller


torno cnc CK61125 2000mm metal cnc lathe machine for turning

$28,000.00 - $30,882.00 / set

1 set



To provide users with more meet the requirements of the product Slant Bed CNC Lathe tck550

$17,900.00 - $24,600.00 / set

1 set



High Performance Infinite Variable Speed Automated lathe machine CK61100

$17,900.00 - $23,400.00 / set

1 set



VMC1270 Hot sales CNC Vertical Machining Center 3 4 5 axis for Sale

$29,300.00 - $32,600.00 / set

1 set



CNC Center Machine Vmc1370 Wholesale Suppliers cnc milling machine

$23,000.00 - $36,000.00 / set

1 set



CNC Lathe Tool Reduction Sleeve Boring Bar Metal Lathe CNC 2 axis

$19,000.00 - $23,400.00 / set

1 set



Industrial Production Equipment CNC Milling Machine Vertical Machining Center Vmc550 4 axis

$15,900.00 - $18,960.00 / set

1 set



Cheap Factory Price Ck0640 flat Bed Small CNC Lathe for Sale automatic lathe machine

$4,500.00 - $5,187.50 / set

1 set



Ck6160 Heavy Duty Precision CNC Lathes Programming CNC Lathe automatic lathe machine

$9,900.00 - $13,400.00 / set

1 set



Vertical cnc milling machine 3/4/5 axis vmc 966 VMC aluminium cnc milling machine center

$61,000.00 - $69,000.00 / set

1 set



Vmc1690 3/4/5 Axis High Performance Vertical CNC Machining Center CNC Machine

$61,000.00 - $69,000.00 / set

1 set



Automation and mechanization Swiss cnc lathe sm205 Shipping worldwide

$40,000.00 - $49,000.00 / set

1 set

FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.

Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will timely deal with the free new parts for you to replace the next order.

Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .

Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc.

Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
