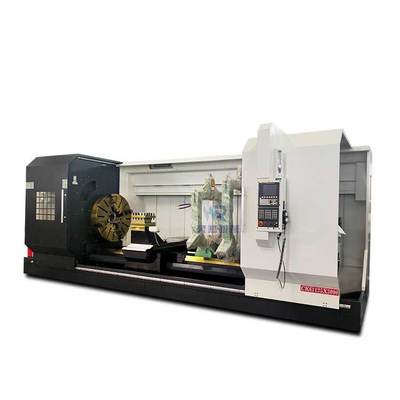

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed
CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

Büyük resim :  CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: HR
Sertifika: CE
Model numarası: CK61125
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: 35400USD/1 Set
Ambalaj bilgileri: Standart malzeme ambalajı
Teslim süresi: 30 iş günü
Ödeme koşulları: T/T, L/C
Yetenek temini: 100 set/ay
İletişim

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

Açıklama
Gerilim: 3 Faz 380V 50Hz Otomatik sınıf: Otomatik
Güç (W): 4.0/5.5/7.5kw Maks. Salıncak çapı: 1250mm
Ağırlık: 6500kg CNC olsun ya da değil: CNC
Tip: Yatay,DÖNÜŞ MERKEZİ Satış sonrası hizmet sağlanan hizmet: Mühendisler Yurtdışında hizmet makineleri, çevrimiçi destek, video teknik desteği
Garanti: 1 Yıl, 12 Ay Mil delikli: 105mm
Mil Hızı: 100-2000 dev/dak Renk: İsteğe bağlı
Makine tipi: Düz Yataklı Torna Ürün adı: CNC torna makinesi CK6150 yatay metal kesme makinası
Yıl: Yeni Kontrol sistemi: SIEMENS GSK FANUC (isteğe bağlı)
Vurgulamak:

1250mm Max Swing Diameter CNC Lathe Machine

,

105mm Spindle Bore CNC Lathe Machine

,

100-2000r/min Spindle Speed CNC Lathe Machine



CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.


CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 0

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 1

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 2


Left Elevation

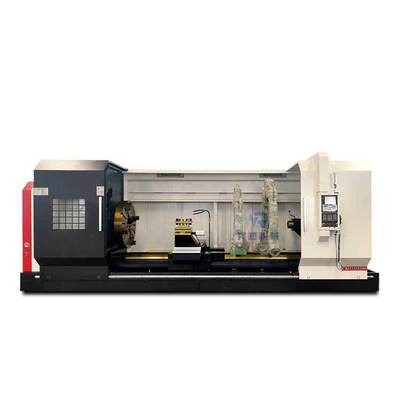

Front Elevation


Right Elevation




CNC Lathe Features
1. A high strength, widening the crriage, suitablefor heavy cutting
2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 3


type

Parameter

Max. swing over bed

Φ1250mm

Max. swing dia. over cross slide

Ф900mm

Max turning diameter

Φ1250mm

Processing length

1000-5000mm

Effective processing length

850/1350/2850/3800/4800

X/Z axis max. stroke

530/1000-5000

X/Z axis min.displacement unit

0.001

Diameter of spindle bore

Ф105mm

Form

Four gears No gearshift

Spindle speed

30-84/53-150/125-350/300-835

Main motor power(frequency conversion)

11KW

Frequency converter

15KW

X/Z axis torque

10/15 N.m

X/Z axis Cutting feed rate

4/6 m/min

type

4 station electric tool post

Section of tool shank

40*40

Repetitive position precision

≤0.004

Dia.of tailstock sleeve

Φ75mm

Travel of tailstock sleeve

200mm

Sleeve taper

MT 6#

Net weight

4500/5000/5500/6000/6500/7000kg

Dimension size(L×W×H)

2800/3700/4200/5200/6200/7200*1820*1780

Power demand (power/current)

20kW/30A


Detailed Images


CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 4

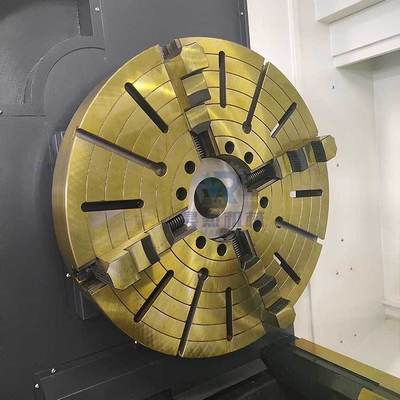

Precision chuck
* Fast clamping product rotation at the same time for processing

* Optional hydraulic chuck

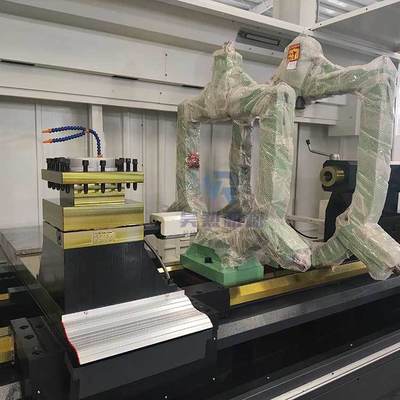

Tool rest tower
* Standard configuration 4 knife position
* Can be selected according to the requirements of 6 knife position, 8 knife position

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 5


CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 6


Numerical Control System
* Assembly of wide numerical control system, but also optional other numerical control system
